Autel MaxiTPMS TS501 TPMS Diagnose/ Programming/ Relearn Tool Supports Activate/ Relearn All Brand Sensors & Program MX-Sersors Global Version Lifetime Free Update Online

: Unavailable

:

: Autel

Regular price $198.00

Hightlights:1. Lifetime Free Update Online2. Supports Multiple Languages: English, Spanish, French, Italian, Russian, Polish, Dutch, Czech, Japanese, Swedish, Hungarian, Korean. (If you...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
Hightlights:

1. Lifetime Free Update Online
2. Supports Multiple Languages: English, Spanish, French, Italian, Russian, Polish, Dutch, Czech, Japanese, Swedish, Hungarian, Korean. (If you want to change the language, please provide the Serial Number to us.)
3. No IP Limitation problem: Autel TS501 can be used in anywhere. Don't need to worry about the Tablet blocking.
4. Ship from US/ UK/ EU no Tax: can be delivered in 4 - 7 business days, no need to pay import Tax.
5. To confirm compatibility before purchase, please email to Sales@AutelTool.us these information: Vehicle model and year, VIN, Engine code and functions needed.

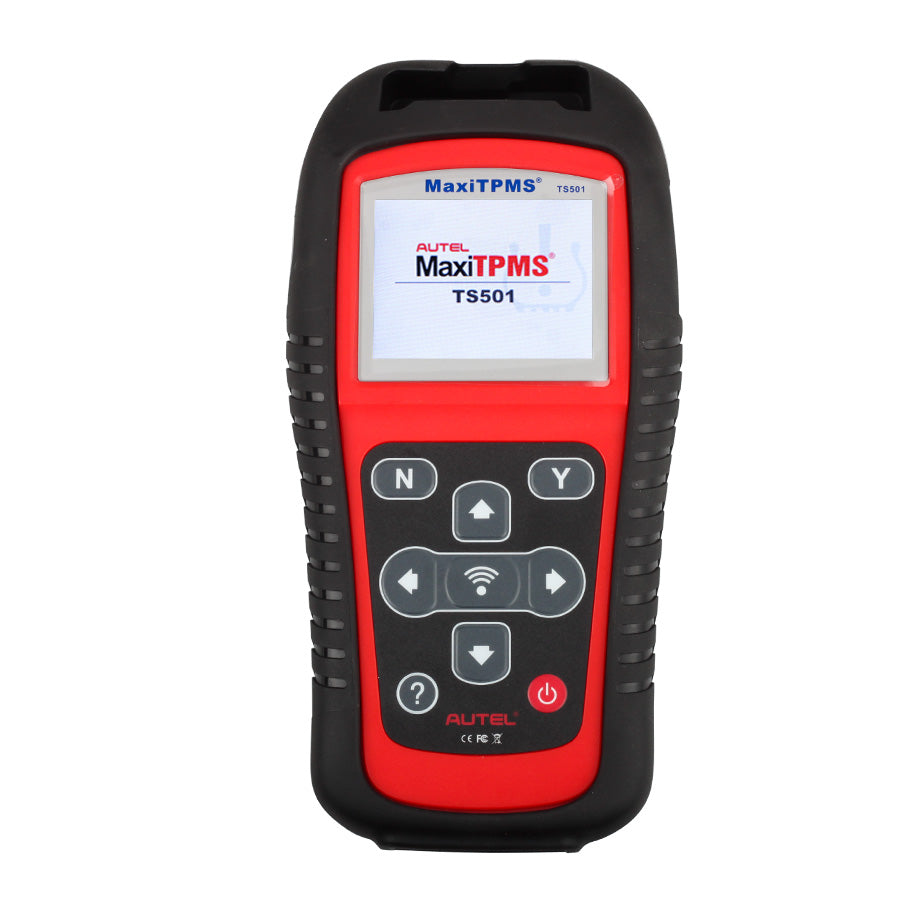

Autel MaxiTPMS TS501
Autel MaxiTPMS TS501 Description:

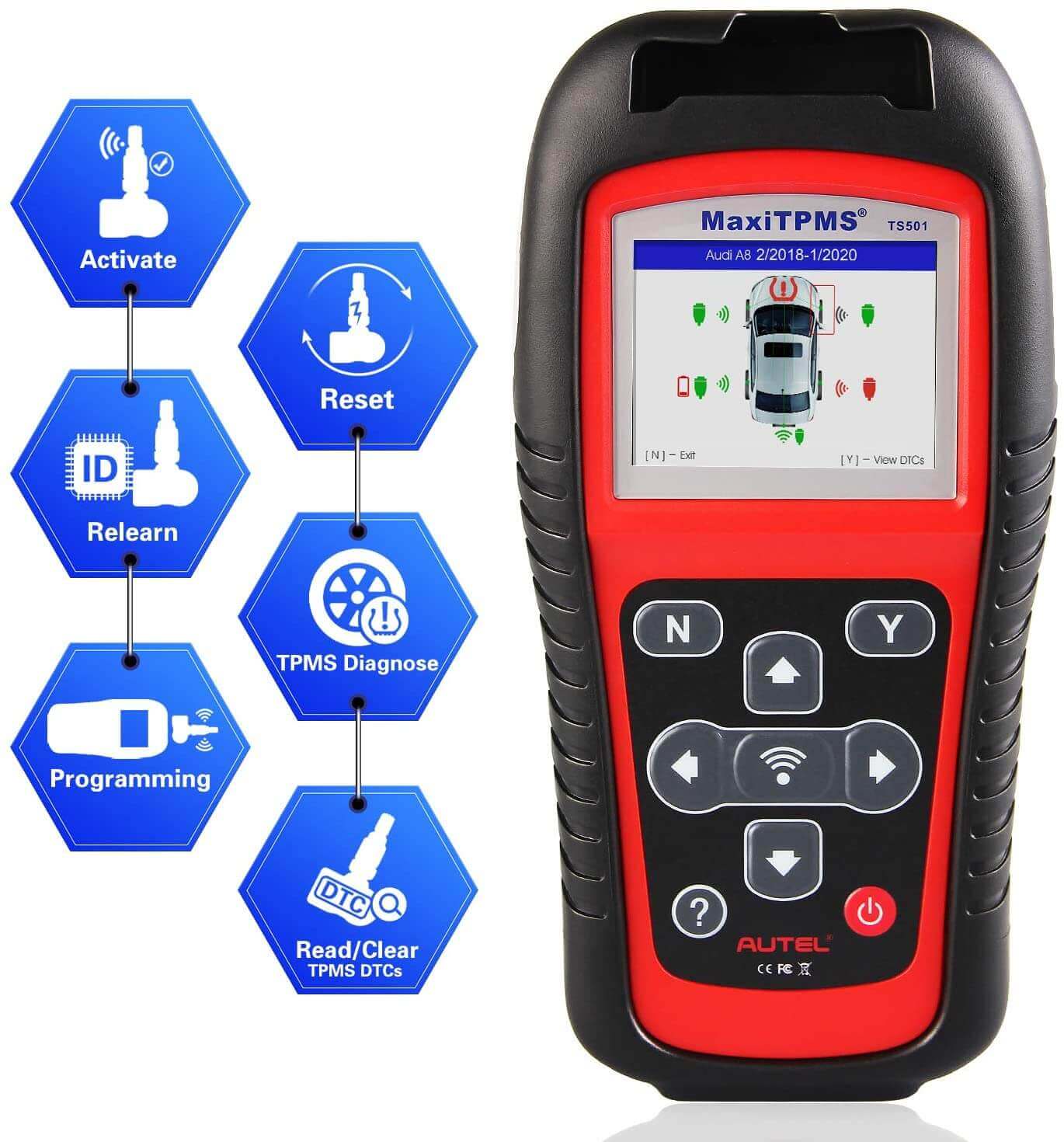

Autel MaxiTPMS TS501 is capable of wirelessly diagnosing TPMS problems as well as activate any known OEM / Universal TPMS sensors, ID clone or reprogram sensors to the vehicle's ECU, and turn off warning lights.

Top 3 User-friendly Highlights:

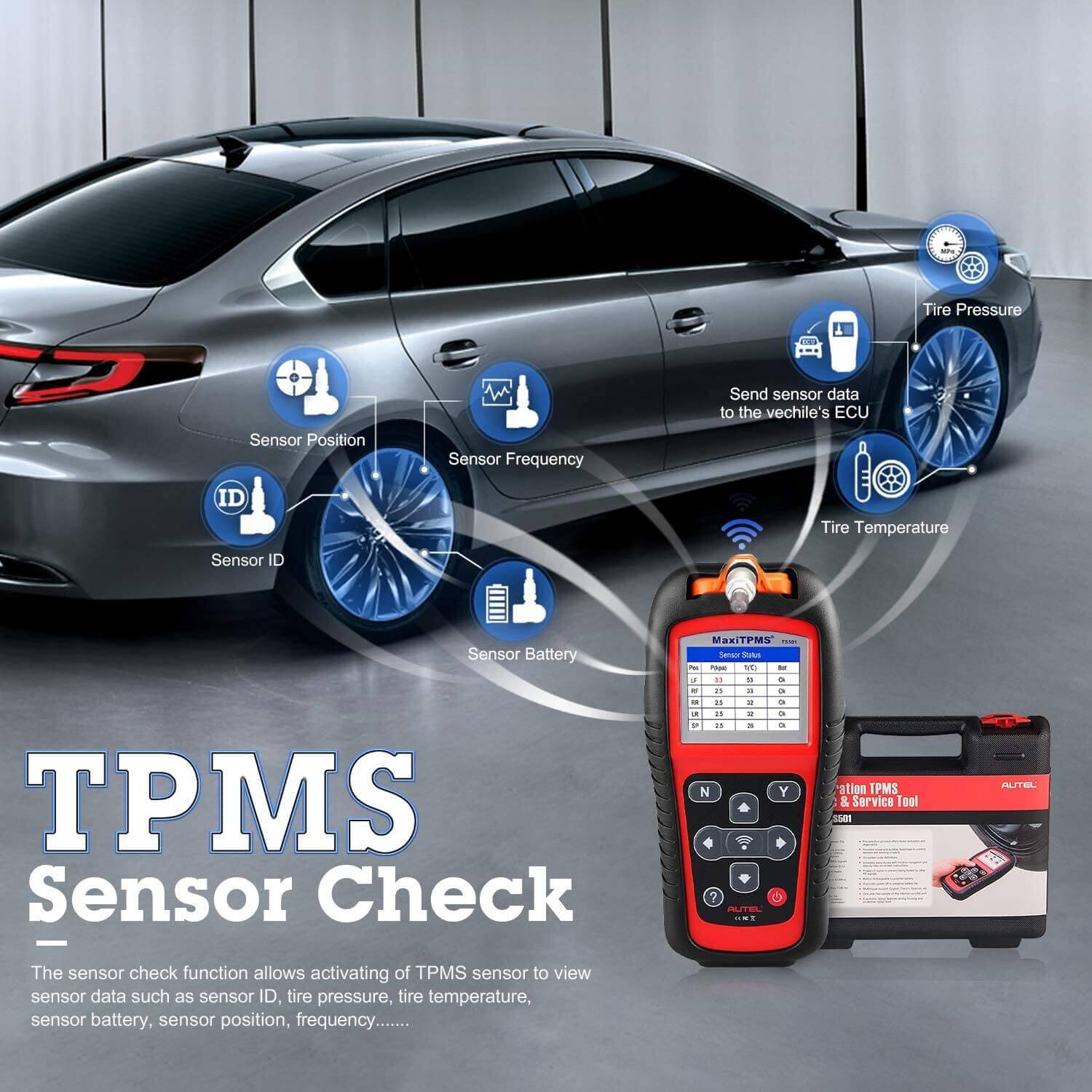

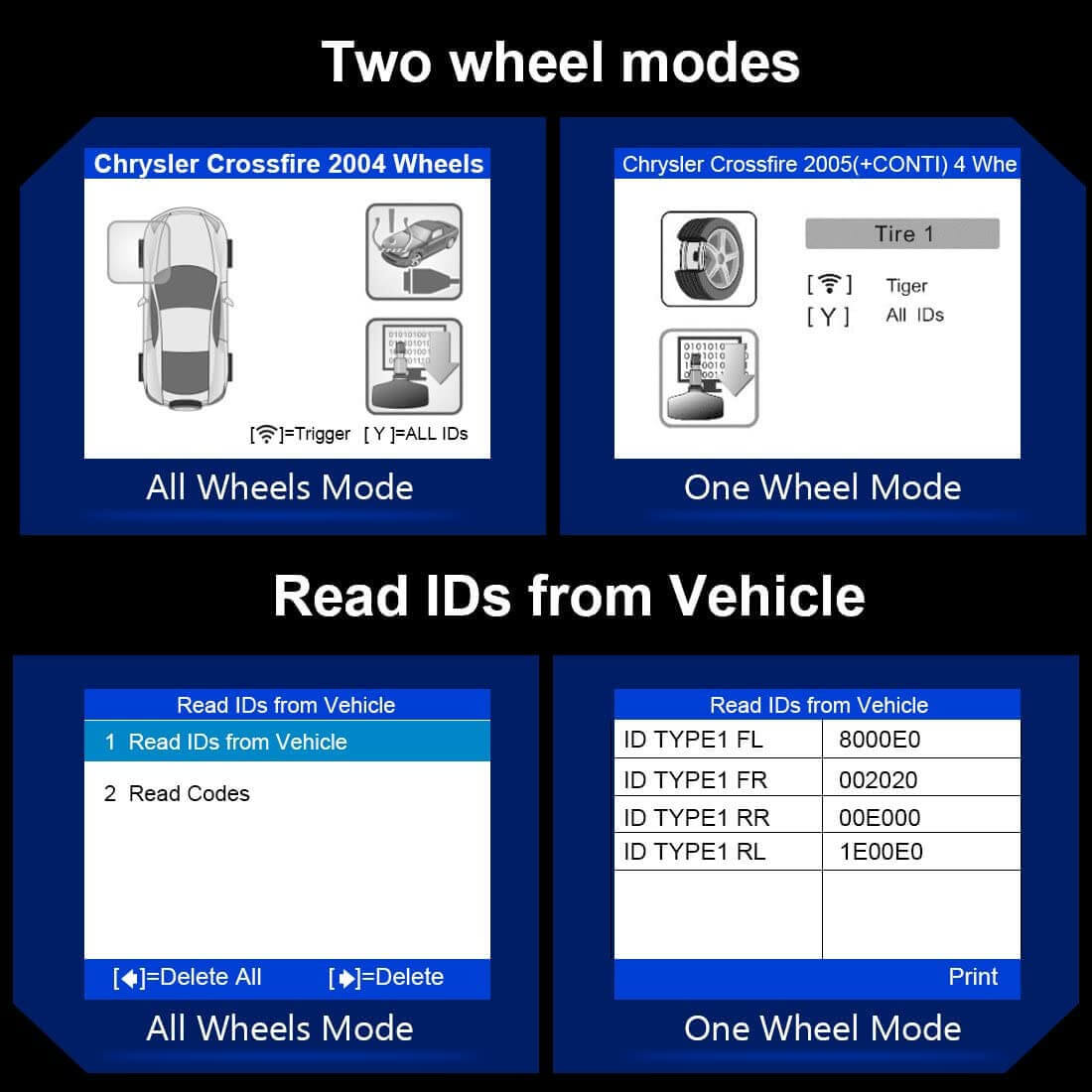

1. TS501 At-A-Glance TPMS Status Screen
The single screen organization allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features,compare sensor and ECU data,then instantly pinpoint system faults to identify the fix.This At-A-Glance view of all sensor information easily shows the location of which sensor battery is low and needs to be replaced soon.

2. OBDII Connected TPMS Diagnostics
The TS501 can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, or auto create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning.

3. TS501 Easy To Use Software Operation
Performing a basic sensor activation or complex diagnostic tool functions, is easy as following the program options and on-screen display instructions. The TS501 provides code definitions and visual / audio responses to make the operations much easier and more convenient to complete. Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!

Autel MaxiTPMS TS501 Features:

Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals
Receives both 315MHz and 433MHz signals

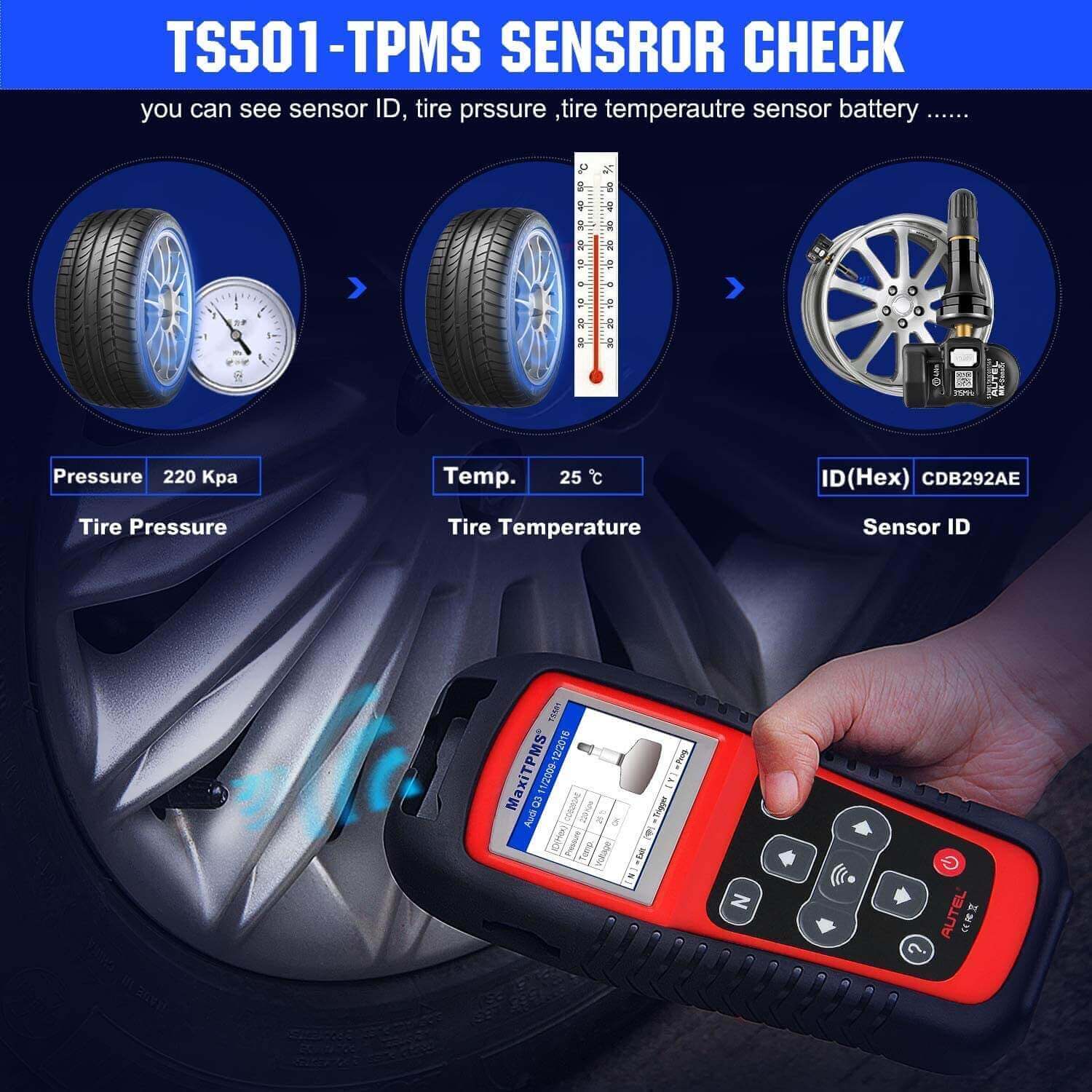

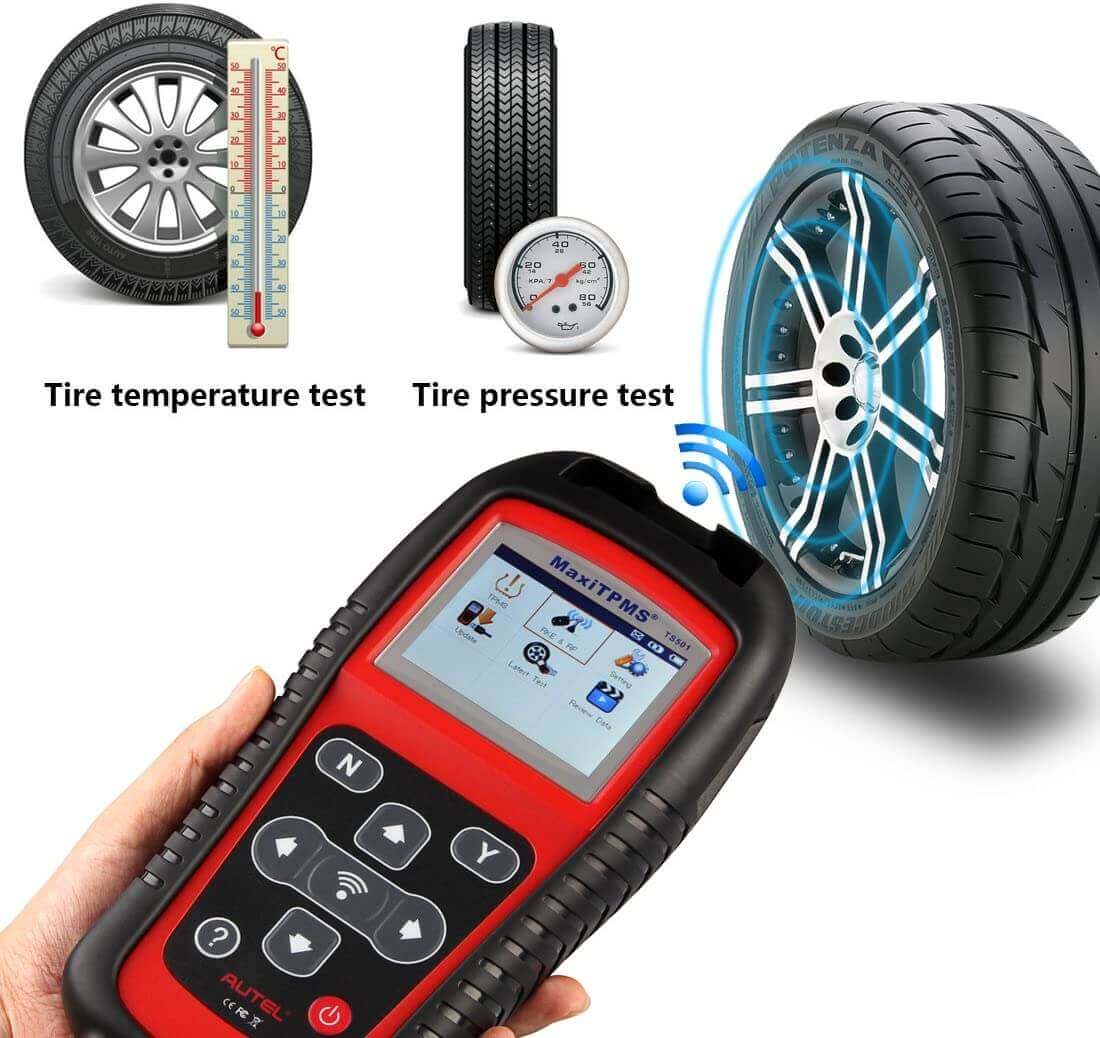

Reads data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
Reads / writes sensor ID from vehicle ECU

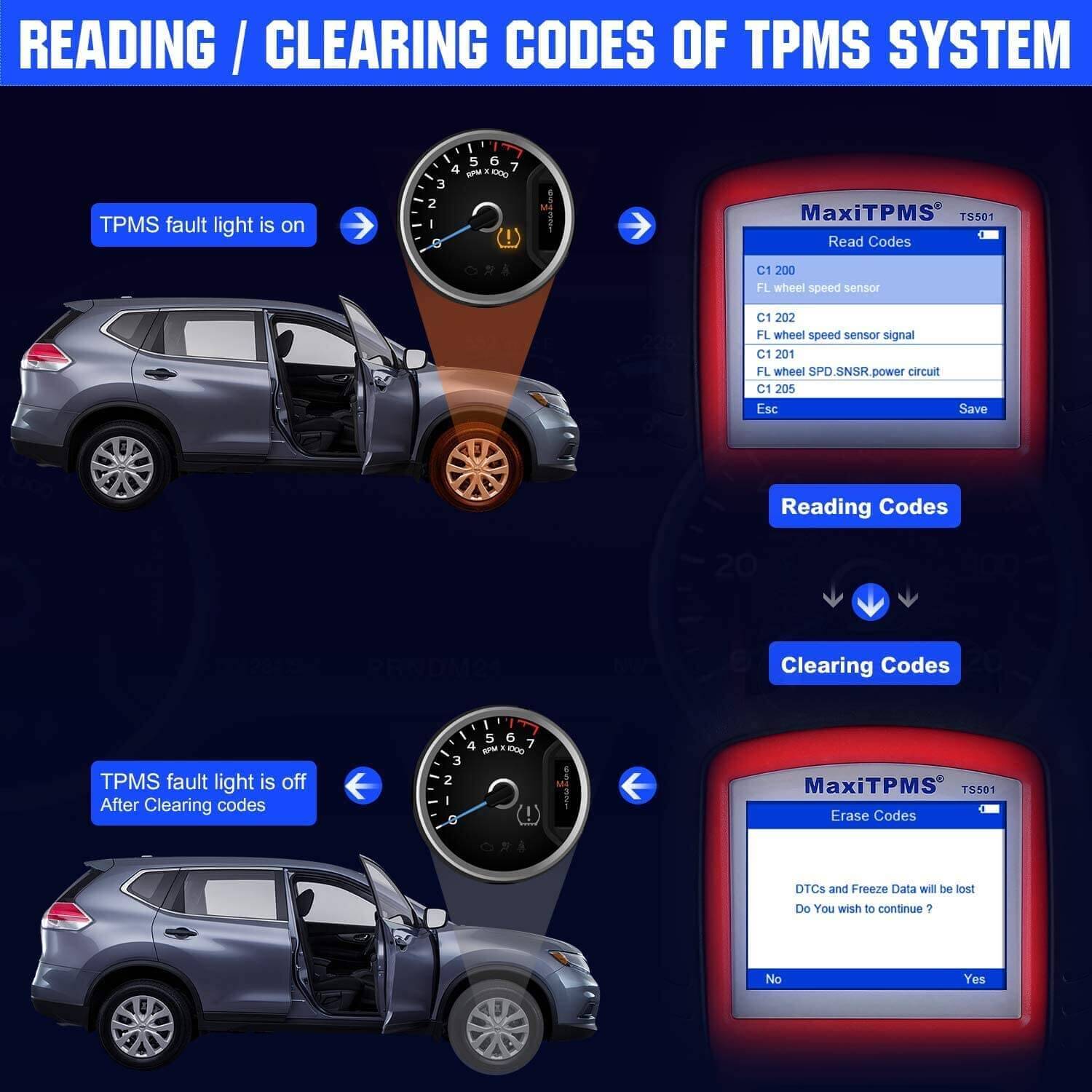

Reads / clears codes of TPMS system and reset malfunction indicator light
Checks Remote Keyless Entry (Key FOB) for transmissions
Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
Pre-selection process offers faster activation and diagnostics
Programs vehicle ECU to learn sensor IDs and positions
Provides visual and audible responses to confirm sensors are working properly
On-screen code definitions
Displays Sensor ID and Battery Level and Tire Pressure and Temperature;
Activate TPMS sensors on Domestic, Asian and European vehicles;
Programs / Clones Autel MX-Sensors to replace OEM sensors;
Proper LF signal to prevent being fooled by other RF signals
Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions
Built-in rechargeable Li-polymer battery
Automatic power-off to preserve battery life

Autel MaxiTPMS TS501 Instruction:

Prints TPMS sensor data via PC
Automatic power-off to preserve battery life
Proper LF signal to prevent being fooled by other RF signals
Saves up to 16 TPMS records
If a failed sensor is detected, the tool displays the replacement part number

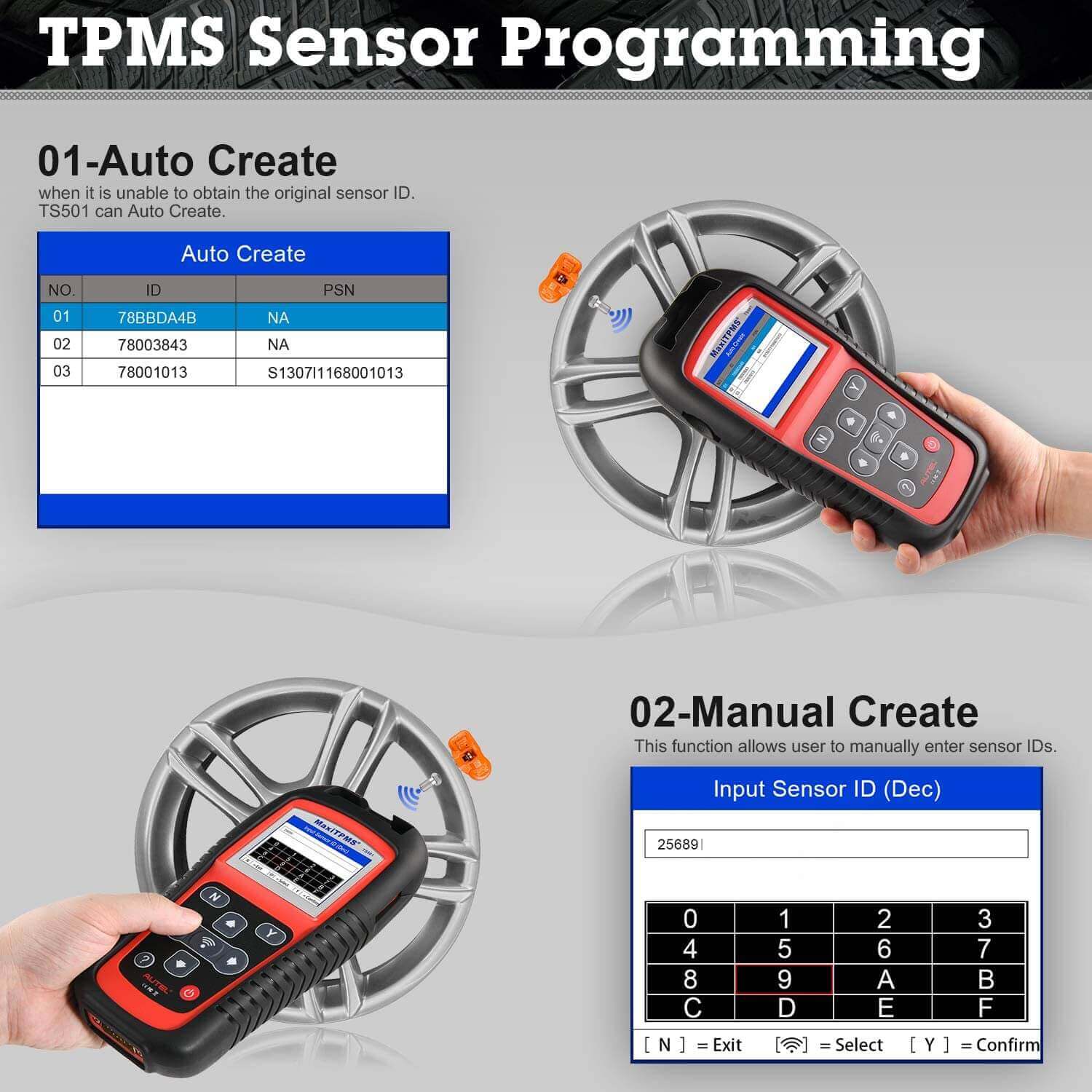

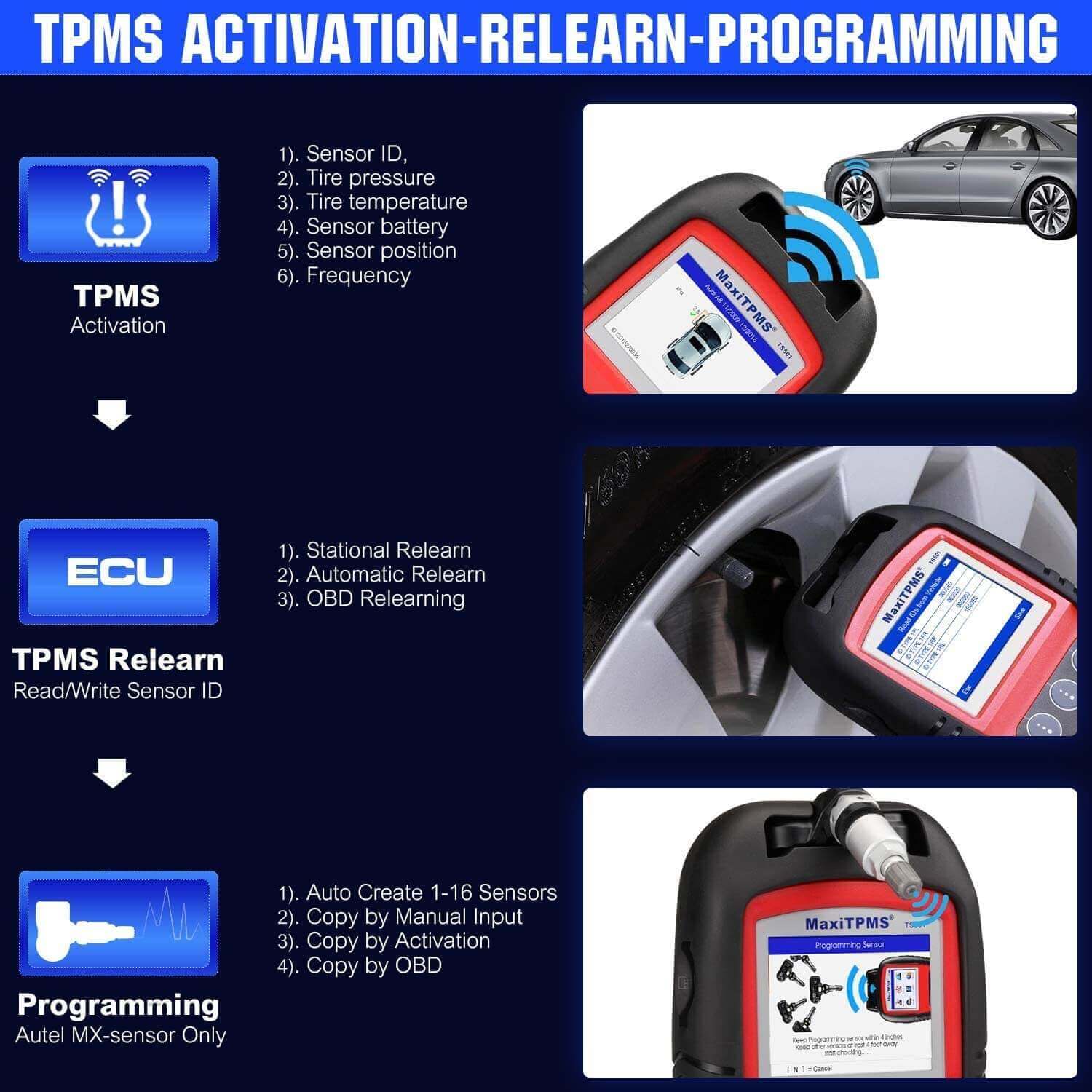

Autel MaxiTPMS TS501 Sensor Programming:

Auto Creat
Copy by OBD

Autel MaxiTPMS TS501 Information Excerpts:

1. Battery Charging
The TPMS tool has a 3.7V built-in lithium-ion polymer rechargeable battery. There are two means of battery charging:

* To charge battery by power adapter.
1) Locate the power port of the device.
2) Connect the device and the power source with the adapter.

* To charge battery by USB cable
1) Locate the USB port of the device.
2) Connect the device and the computer with the USB cable.
For optimum performance, always keep your tool sufficiently charged. It is recommended that you charge the tool for over 2 hours before the first use.
NOTE: Only use the power adapter or USB cable that is included in our pack to charge this tool. The use of unapproved power supplies may damage your tool and void the tool warranty.

2. Power Up by DLC
The tool can also be powered via the vehicle Data Link Connector (DLC). Just follow the steps below to turn on the TPMS tool:
1) Connect the OBDII Cable to the TPMS tool.
2) Find DLC on vehicle.
A plastic DLC cover may be found for some vehicles and you need to remove it before plugging the OBDII cable.
3) Plug OBDII cable to the vehicle's DLC.
4) Power up the TPMS tool by pressing the Power Button, and wait for the Main Menu to appear.
NOTE: OBDII connection does not support battery charging.

Autel MaxiTPMS TS501 Specification:

Display: TFT color display (320 x 240 dpi)
Power: 3.7V Li-polymer battery
Operating Temperature: 0 to 50°C (32 to 122 °F)
Storage Temperature: -20 to 70°C (-4 to 158 °F)

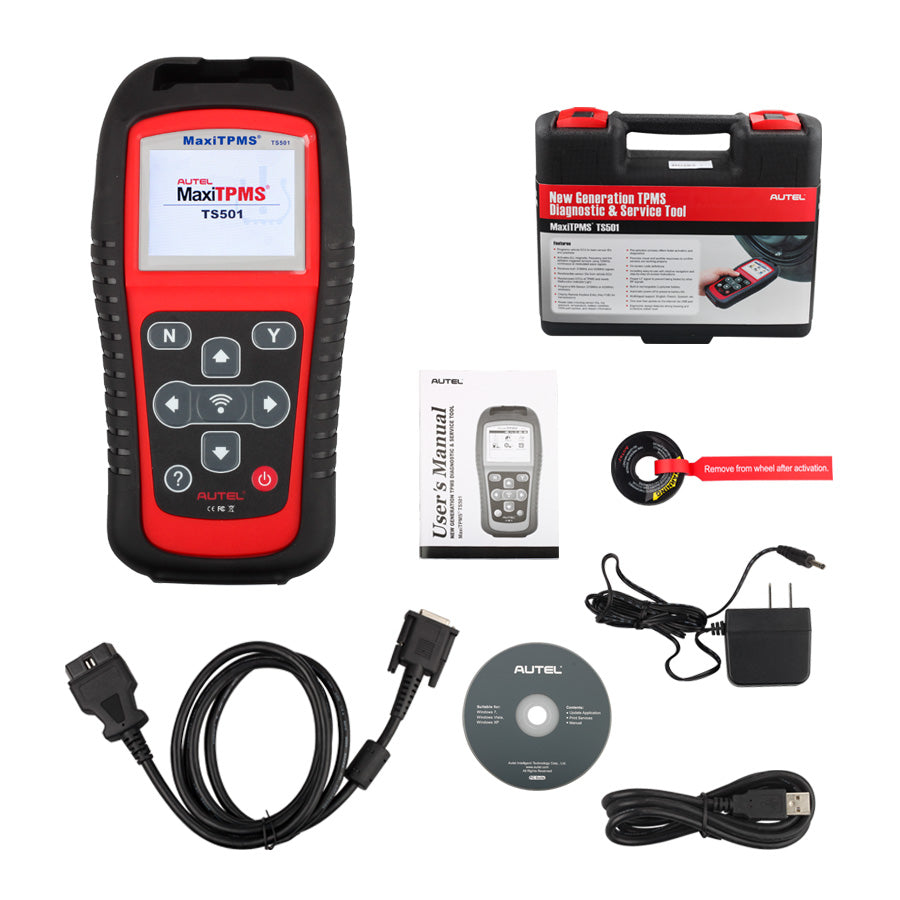

Autel MaxiTPMS TS501 Package List:

1pc x TPMS TS501 main unit
1pc x USB Cable
1pc x SD CARD
1pc x Charger
1pc x Magnet
1pc x OBDII Cable
1pc x User's Manual
