Note:

The Autel MaxiBAS BT506 Does Not Have a Screen!
To perform testing and display test results the Autel MaxiBAS BT506 (English Version?
) must be used with some Autel Tablets (Tablets require “Battery Test Icon) or Other Smart Device (Free iOS or Android Apps Available).
Autel MaxiBAS BT506 Description
Autel MaxiBAS BT506 Description:

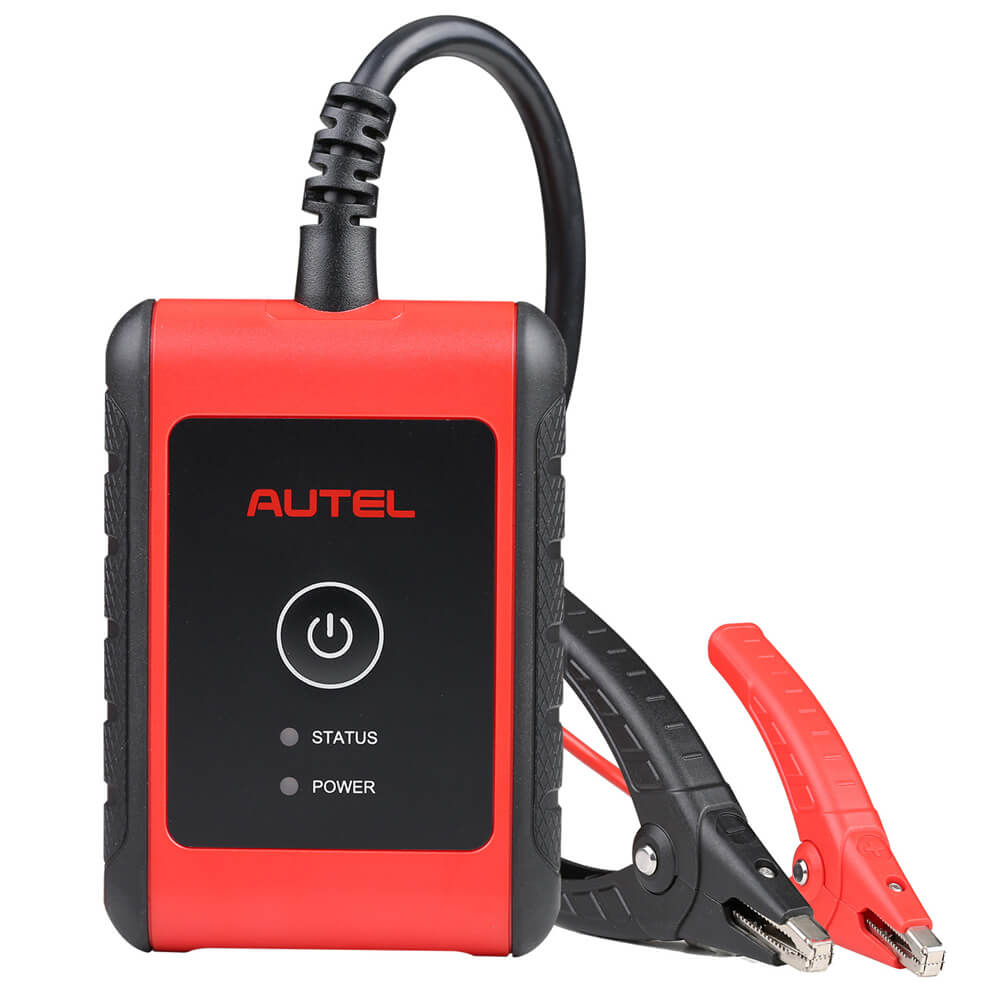

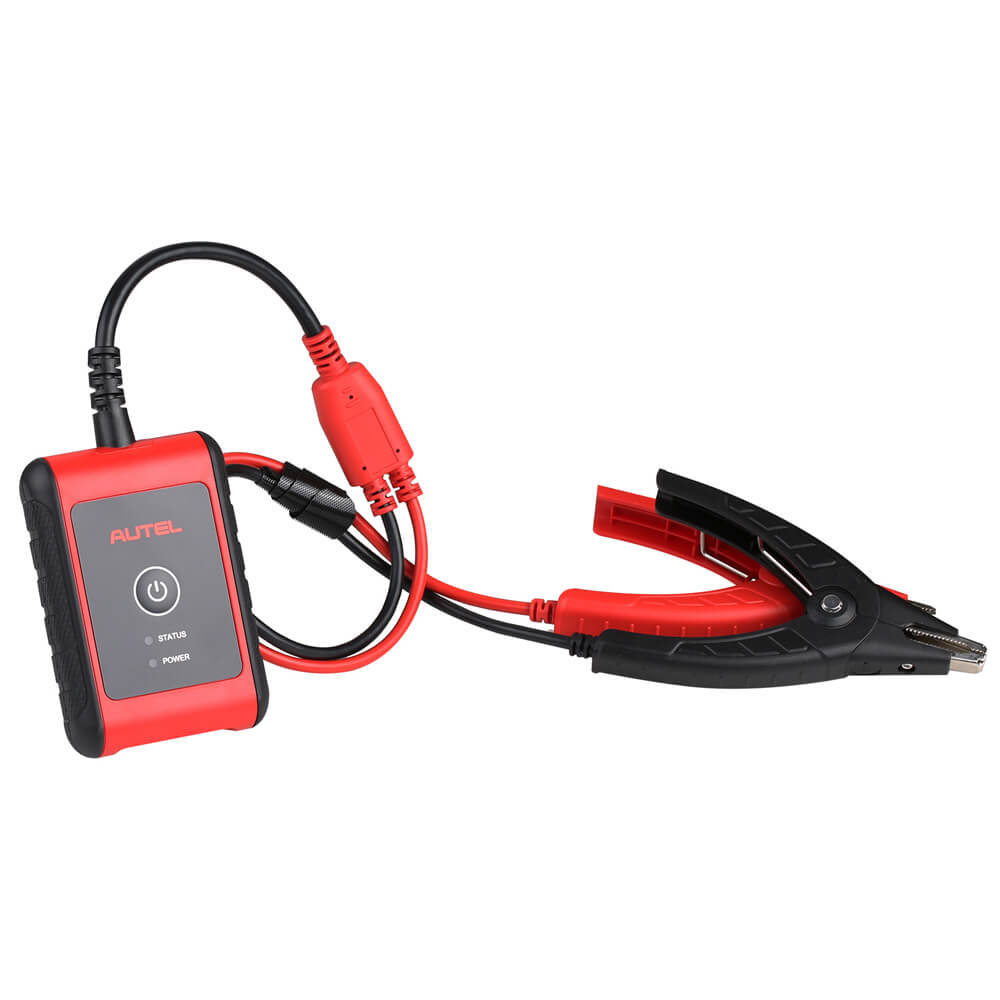

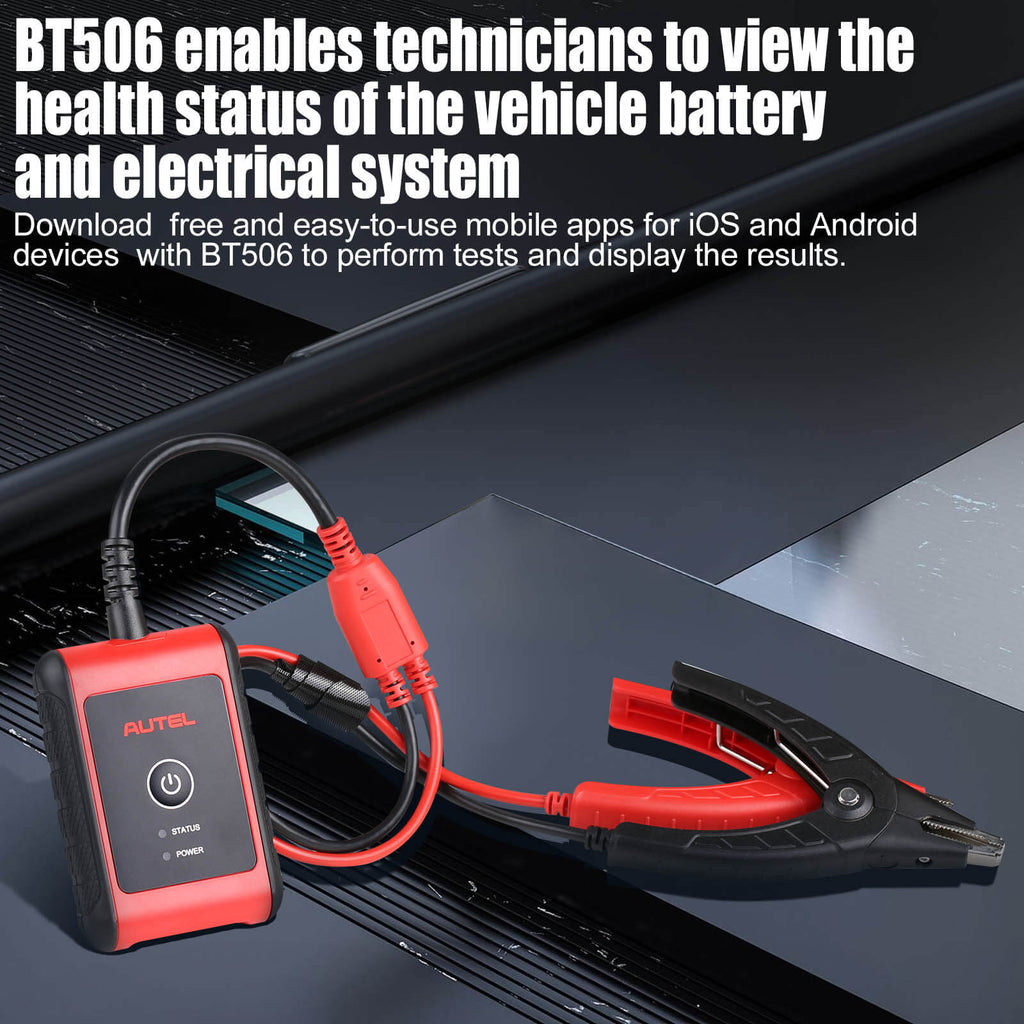

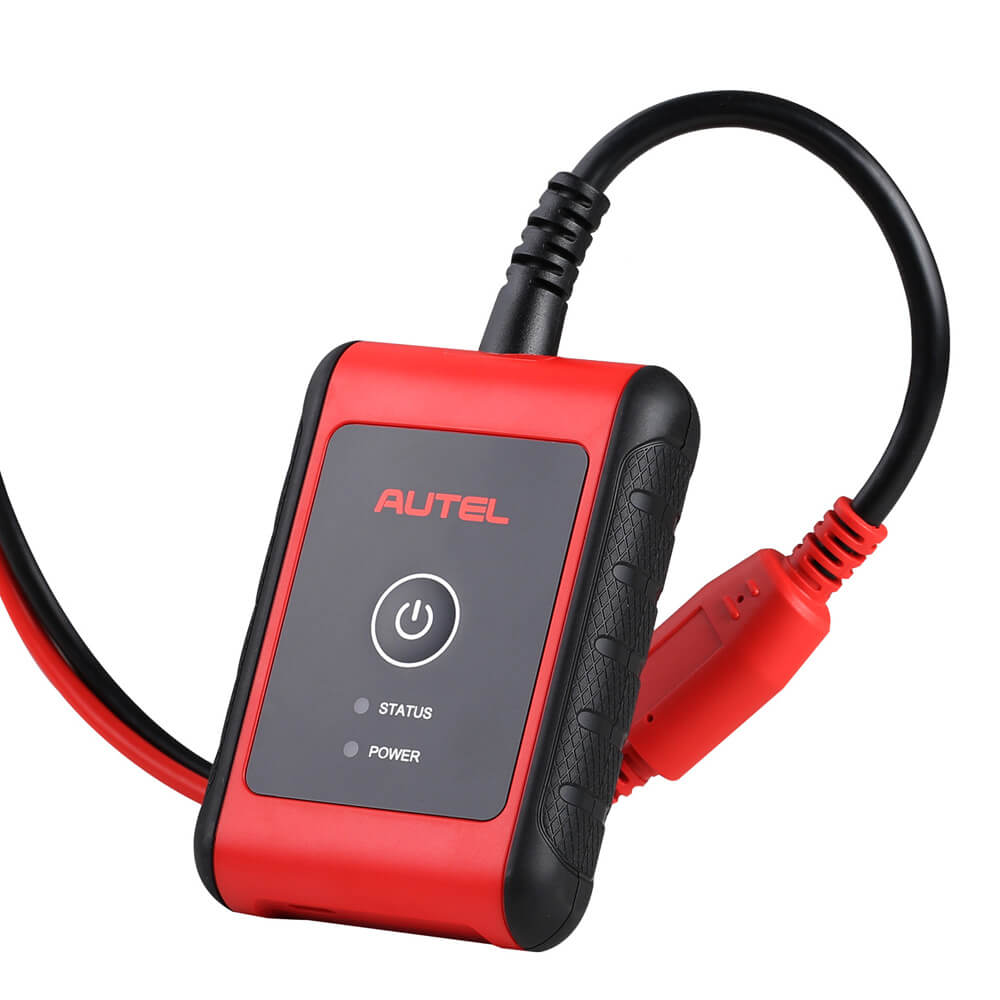

The Autel MaxiBAS BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The Autel MaxiBAS BT506 enables technicians to view the health status of vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the Autel MaxiBAS BT506 to perform testing and display test results.

Autel MaxiBAS BT506 Features:

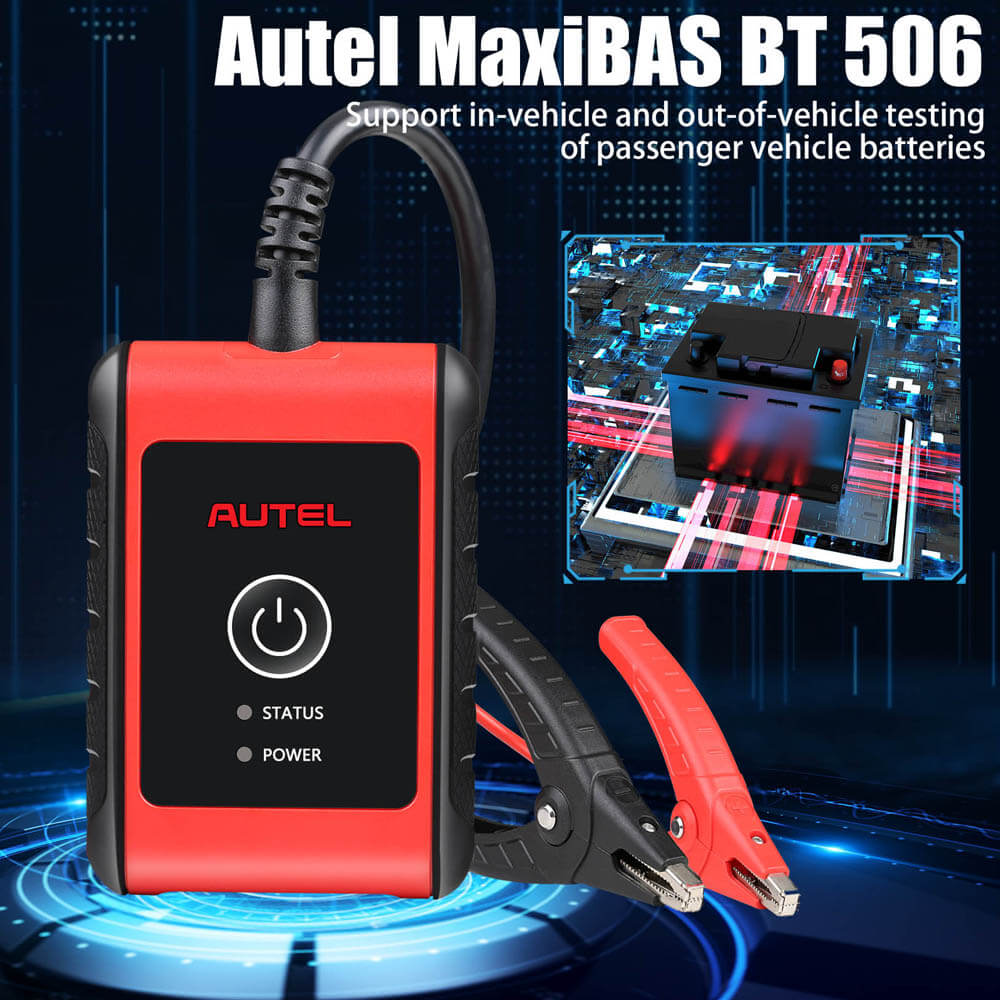

Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
Test 6- and 12-volt batteries: 100 - 2000 CCA
Test 12- and 24- cranking/charging systems
Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

Main Features of Autel MaxiBAS BT506

The Autel MaxiBAS BT506 is a new app-based battery analysis tool developed by Autel. Download the free and easy-to-use mobile app, available for iOS and Android devices, and use it with the Autel MaxiBAS BT506 to perform testing and display test results.
Autel MaxiBAS BT506 Description
Autel MaxiBAS BT506 Description

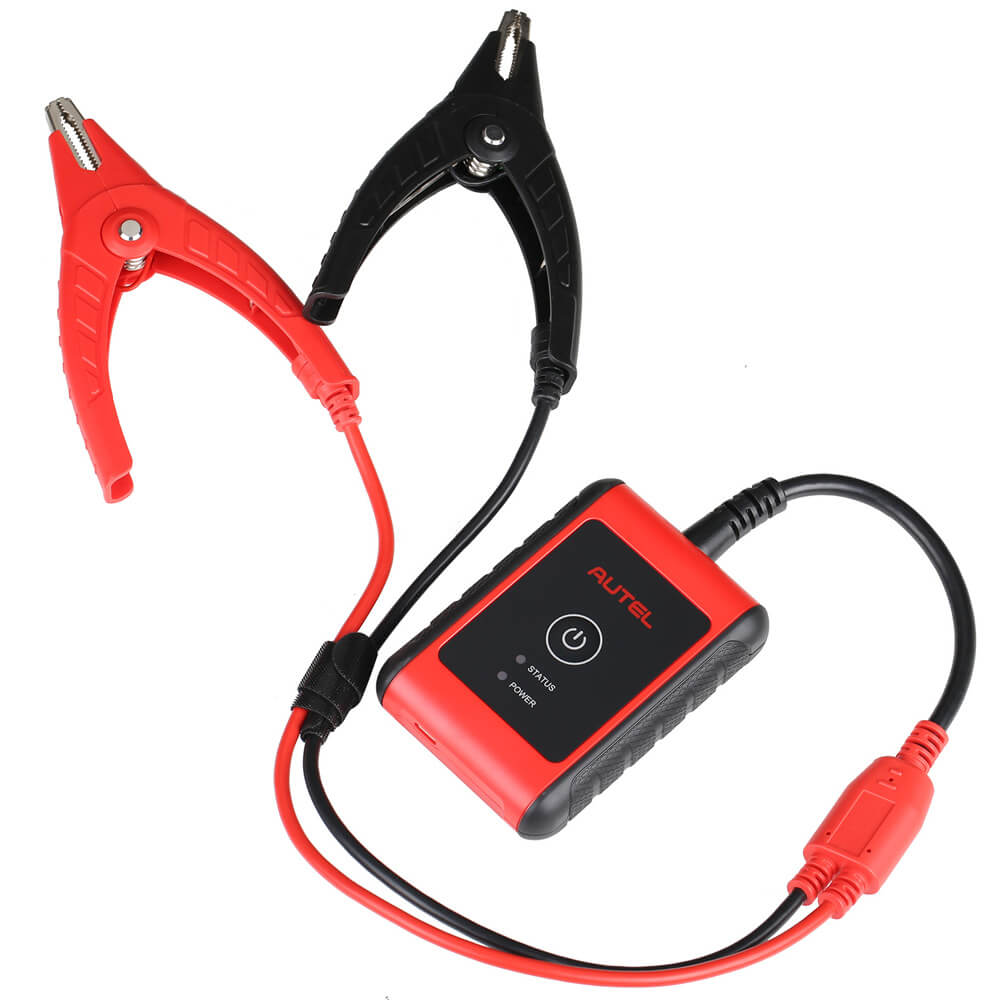

Autel MaxiBAS BT506 has positive and negative alligator clamps which are polarity protected, so even if you reverse the clamps and put the negative on the positive terminal, it is OK. In fact, the LED on the tester is color coded to alert the users of connection and testing status, so the testers will flash red to alert you that you have made the error.
Autel MaxiBAS BT506 Description
The tester is bluetooth enabled and that's how it shares the test information with the app.

Autel MaxiBAS BT506 Specification:

Item: Autel MaxiBAS BT506
Connectivity: USB 2.0, Type C
Bluetooth: V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage: 5 V DC
Working Current: < 150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36 V
Working Temperature: -10°to 50° C (14° to 122° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21� x 75 mm (2.95� x 26 mm (1.02� (clamp cable not included)
Weight: 320 g (0.7 lb.)

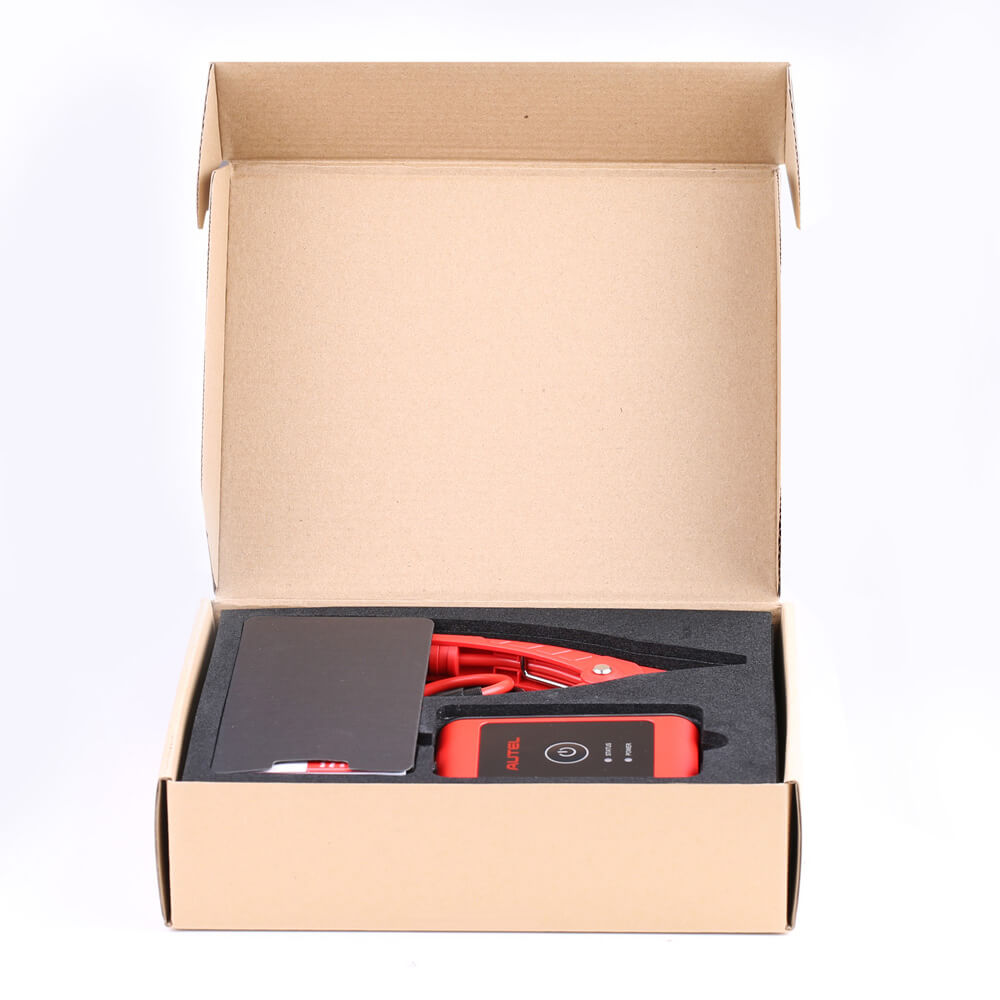

Autel MaxiBAS BT506 Package list:

1pc x Autel MaxiBAS BT506 (English Version)
1pc x User Manual (English Version)
AutelTool.us built USA overseas warehouses, can ship order without tax.

Click "US Ship" to purchase items that were sent from USA. Now ONLY ship to USA. Usually can be delivered in 5-7 business days.
We will ship the other items from Shenzhen, China, that don't mark where ship from. Usually can be delivered in 7- 15 business days.

Attention:

1. When we cannot deliver order from US, we will deliver the parcel from China automatically.
2. Sometimes due to strikes, natural disasters and other force majeure factors, delivery will be delayed。

Please click here to read more details about Shipment and Delivery.
Please click here to read more details about Return Policy.
If you have any questions, welcome to contact us (Email to Sales@AutelTool.us).
