Autel MaxiSys MS908CV OBD2 Diagnostic Scanner for Heavy Duty Truck/ Semi Truck/ Commercial Cars, with J2534 ECU Coding & Programming, Only for USA

: Unavailable

:

: Autel

$1,999.00 $2,499.00

Autel MaxiSys MS908CV Description:As a new member of Autel's MaxiSys family, the MaxiSys MS908CV is built on the powerful MaxiSys 908 platform...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
Autel MaxiSys MS908CV Description:

As a new member of Autel's MaxiSys family, the MaxiSys MS908CV is built on the powerful MaxiSys 908 platform and provides a comprehensive diagnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe and Asia. Offering advanced features and extreme ease-of-use, MaxiSys MS908CV is the ideal solution for independent repair shops, owner-operators and various sized fleets seeking a single scan tool for all their professional heavy duty needs.

Why should you buy Autel MaxiSys MS908CV from AutelTool.us?

1. Upgraded Ver. of MS906CV, MK908 and MK908P;
2. Superior Hardware Improves Your Work Efficiency to 200% --- Powerful Cortex-A9 quad-core processor, 9.7-inch LCD capacitive touch-screen with 1024x768P resolution, Built-in 64GB SD, 5-megapixel rear camera with autofocus and flashlight, Dual-band (2.4 GHz & 5.0 GHz) Wi-Fi, 8 hours of continuous operation with 11000 mAh battery, 210 Feet (70 m) Wireless (BT) working range.
3. Advanced J-2534 ECU Coding --- It allows you to match the modules with components, flash the hidden functions, and customize the OE-settings as you wish.
4. 25+ Special Functions Meet Your 99% Needs --- Hot service functions such as Oil Reset, EPB, BMS, DPF, Injector Coding, Throttle, IMMO, Headlamp, CHG Tire Size, Trans Adaption, Tire Pressure Monitoring, Battery Matching, ABS Bleed, Seat Matching, Gear Learning, Safety System, Cylinder, and so on.
5. 23 Adaption Functions Win You More Business --- Such as DOC / DPF Replacement Reset, Fuel Pressure Adaptation Reset, Injector CEOM Reset, O2 Sensor Calibration, Injection Quantity Adjustment, DPF Regeneration, DSI System De-Aeration, MAF Sensor Calibration, Parameter Setting, ect.

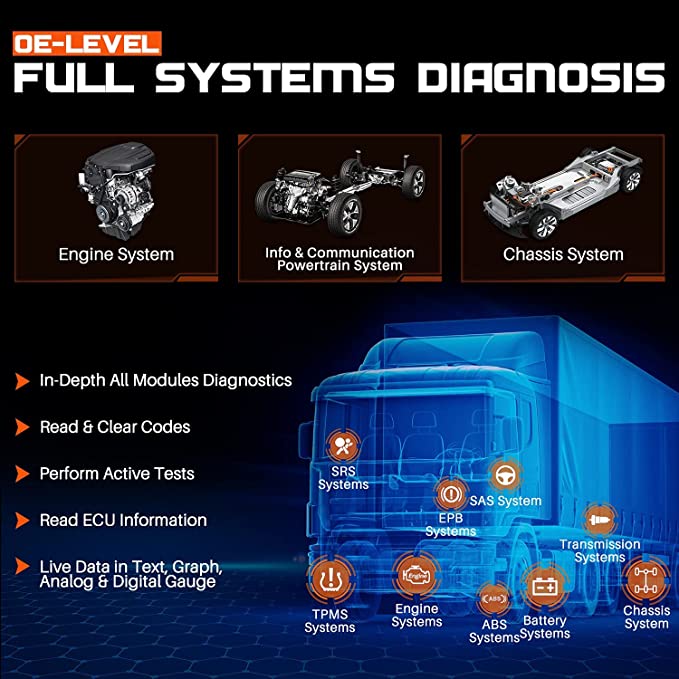

6. OE-Level All Systems Diagnostic --- MS908CV can scan all available systems (ECM, TCM, ABS, Airbag, BCM, Parking/ Steering/ Suspension/ Radio, Lighting/ HVAC systems, etc.) to read and clear codes, view live data stream of multiple sensors in text or graph, retrieve ECU information, freeze frame, which can help you diagnose error codes faster and help you solve problems faster.
7. Bi-Directional Controls (Active Test) --- such as, Engine Compression Brake, Relative Compression, Aft Fuel Doser, Injector cutout, Cylinder cutout, etc.

Autel MaxiSys MS908CV Functions:

25+ Service Function & 23+ Adaption Function from 1996 to 2022
Updated from Maxisys 906CV, MS908CV Heavy Duty diagnostic tool comes with 25+ service functions and 23+ adaptions functions, effectively meeting daily maintenance needs.

1. Oil Maintenance Light Reset: Re-calculate the optimal oil life change interval.
2. Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.
3. Injector Coding: Write the new injector code into the car system for the correct cylinder injection quantity.
4. Electronic Parking Brake Reset: Help replace and reset the brake pad.
5. ABS Bleeding: Help exhaust the air in ABS in an easy way.
6. Throttle Matching: Initialize the throttle actuators to the default state.
7. Battery Matching: Register the battery after replacement
8. DPF Regeneration: Help remove the particulate matter to keep the trap stable.
9. Tire Pressure Reset: Reset the tire pressure.
10. Suspension Level Calibration: Adjust the vehicle body height sensor for level calibration.
11. Headlight Matching: Initialize the adaptive headlamp system.
12. Gearbox Matching: Help complete the gearbox self-learning to improve gear shifting quality
13. Sunroof Initialization: Initialize the sunroof when to be locked off, or closed.
*The heavy-duty scan tool MS908CV performs enhanced diagnoses on more commercial vehicles than other diagnostic tools.

Local-smith Level ECU Coding & J2534 Programming
With the increasing complexity of automotive electronic control systems, ECU programming and ECU coding have become essential skills for nearly every professional mechanic. Therefore, Autel keeps pace with the times and gives the 2022 truck scanner MS908CV high-end ECU coding as well as J2534 programming capabilities, updating the MS908CV to a whole new level. The Heavy Duty Scanner MaxiSys diagnostic tool MS908CV enables you to match modules to components, flash hidden features, and customize OE settings, and it is compatible with light trucks and semi-trucks, for example.

ECU Coding: The ECU coding for heavy machinery is always a nightmare, but time has changed. Once having a heavy-duty scanner MS908CV by your side, you can match the modules with components, flash the hidden functions, and customize the OE settings as you wish. And also it has extensive compatibility, such as light-duty truck Ford F-Series, RAM Trucks Series, Scania (Including CCC, CTS, EACS, EHS, EQU, FSS, and SRC), Mercedes-Benz, Iveco, etc.

J2534 ECU Programming: Vehicles become more and more complex and nearly every function is controlled by an Electronic Control Unit (ECU). J2534 standard is a common emission-related standard applied for mechanics to do programming jobs for various vehicles without using the OE programming tool. MS908CV comes with a newly updated J2534 ECU programming VCI. It helps you to pass-thru the gateway, access the online data, and flash the emission-related ECUs.

Autel MaxiSys MS908CV Wide Vehicle Coverage:

Coverage for Light Duty / Medium Duty / Heavy Duty Trucks
Autel MaxiSys MS908CV professional diagnostic tool comes with unparalleled vehicle coverage of more than 80 American, Asian and European vehicle makes. It can cover vehicles up to 2019, 2020 and some up to 2021.

Expert
for Allison, for Bendix, for Caterpillar, for Cummins, for International, for Detroit, for PACCAR, for VOLVO, for Freightliner, for Wabco, for ZF Meritor, for MERCEDESBENZ, for Boschauto, for PowerStroke , for AISIN, for IVECO, for Mack, for Eaton, for MTU, for MWM, etc.

Buses
for OBD, for VOLVO, for AGRALE, for HINO, for ISUZU, for MERCEDES BENZ, for MITSUBISHI FUSO, for VOLKSWAGEN, for TOYOTA, for RENAULT, etc.

Trucks
for VOLVO, for AGRALE, for AUTOCAR, for CAPACITY, for Dodge, for FIAT, for FORD, for FOTON, for Freightliner, for GMC, for GREAT WALL, for HINO, for HYUNDAI, for ISUZU, for KIA, for MERCEDES BENZ, for MITSUBISHI, for MITSUBISHI FUSO, for Sterling, for International, for IVECO, for VOLKSWAGEN, for Kenworth, for Mack, for Peterbilt, for WORKHORSE, for WESTERN STAR, for SETRA, for UD, for Renault, etc.

Autel MaxiSys MS908CV Comparison:
Models

Autel MaxiSys Elite

Autel MaxiSys CV

Autel MaxiSys MS908S Pro

Autel MaxiSys MS908S

Autel MaxiSys MS906TS

Autel MaxiSys MS906BT

Autel MaxiSys MS906

Functions






All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding -- --
ECU Programming -- -- -- -- --

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan Report North America Only -- North America Only North America Only North America Only North America Only
Print Feature
Multi-language Support
Coverage






Domestic/Asian/European Coverage(1996-Present)
Hardware






Display Size 9.7" 9.7" 9.7" 9.7" 8" 8" 8"
Wireless VCI MaxiFlash Elite MaxiFlash Elite MaxiFlash Elite Wireless Diagnostic
Interface
MaxiVCI V100 MaxiVCI V100 --
Battery Life 15400 mAh 3.7 V 11000 mAh 3.7 V 11000 mAh 3.7 V 11000 mAh 3.7 V 10000 mAh 3.7 V 10000 mAh 3.7 V 5000 mAh 3.7 V
Memory Storage 64GB 64GB 64GB 64GB 32GB 32GB 32GB
Connector Kit
Options






TPMS -- -- -- -- -- --
Oscilloscope --
Inspection Camera --
ADAS √(Online Version No) -- √(Online Version No) √(Online Version No) -- √(Online Version No) √(Online Version No)

Autel MaxiSys MS908CV Specification:

Operating System: Android™ 4.0, Ice Cream Sandwich
Processor: Samsung Exynos Quad-Core Processor 1.4GHz
Memory: 2GB RAM & 32GB On-board Memory
Display: 9.7 inch LED capacitive touchscreen with 1024x768 resolution
Connectivity: Ethernet: RJ45 Ethernet Connection; WiFi (802.11 a/b/g/n); USB: 2.0; BT v.2.1 + EDR; SD Card: (Support up to 32GB); HDMI
Camera (rear): Rear-facing, 5.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone; Dual Speakers; 4-Band 3.5 mm stereo/standard headset jack
Power and Battery: 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage: 12 V (9-24 V)
Power Consumption: 6.5 W
Operating Temp: -10 to 55°C (14 to 131°F)
Storage Temp: -20 to 70°C (-4 to 158°F)
Housing: Strong plastic housing with protective rubber boot
Dimensions: 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight: NW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.)
Protocols: SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL

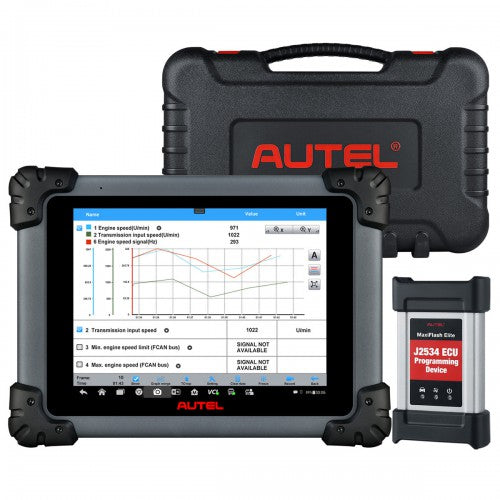

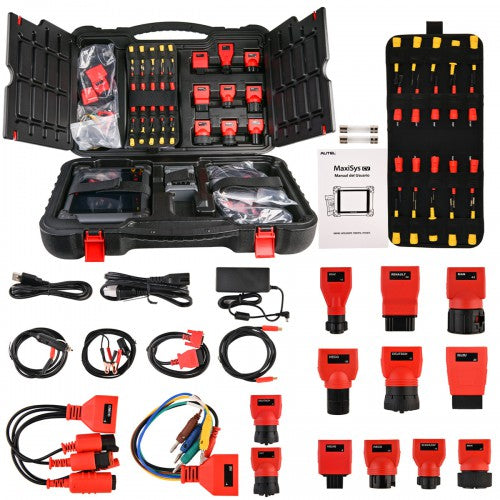

Autel MaxiSys MS908CV Package List:

1x MaxiSYS MS908 CV Main Unit
1x MaxiFlash Elite J2534 VCI

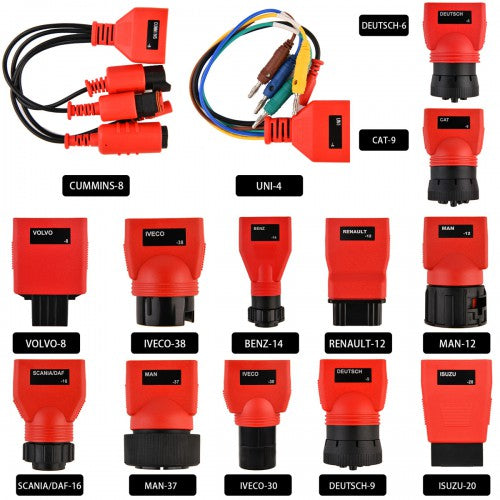

1x Benz -14 adapter
1x Iveco -30 adapter
1x Iveco -38 adapter-
1x Scania / DAF -16 adapter
1x MAN -37 adapter
1x MAN -12 adapter
1x Volvo -8 adapter
1x ISUZU -20 adapter
1x Commins -8 adapter
1x Deutsch -9 adapter
1x Cat -9 adapter
1x Uni -4 adapter
1x Deutshch - 6 adapter
1x Renault -12 adapter
1x AC/DC Adapter (12V)
1x Main Cable
1x USB Cable
1x Mini USB Cable
1x Clipper Cable
1x Cigarette Lighter
1x Light Fuse 6*30mm (2pcs)
2x JW1
2x JW2
2x JW3
2x JW4
2x JW5
2x JW6
2x JW7
2x JW8
2x JW9
2x JW10
1x Quick Reference Guide
1x Packing List
1x Soft Cloth Screen Wipe
1x Carrying Case
