[Second Hand] Autel MaxiIM IM508 Automotive Key Programming Scan Tool with XP200 Key Programmer Advanced IMMO Functions

: Unavailable

:

: Autel

$579.00 $949.00

Autel MaxiIM IM508 Description:Autel MaxiIM IM508 is a professional car key programmer and immobilizer that provides extraordinary services on immobilizer systems. It...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
Autel MaxiIM IM508 Description:

Autel MaxiIM IM508 is a professional car key programmer and immobilizer that provides extraordinary services on immobilizer systems. It could perform all keys lost, add key, key learning, remote control add, remote control learning, key chip read and write and other car related functions. The IM508 pro scan tool is capable of performing OE-Level diagnosis on all car electronic systems, covering wide vehicle coverage of over 80 American, European and Asian vehicles makes and models. The automotive diagnostic scanner also comes with most commonly used service functions like oil reset, EPB, SAS Calibration, TPMS Relearn, BMS and DPF Regeneration and etc.

Autel MaxiIM IM508 Highlights:

1. SECOND HAND Autel Original Tool. Minor Signs of Use
2. No IP Limitation, can be delivered to Any Countries, can be used in Anywhere.
3. Multiple Languages Supported: English, Spanish, German, Russian, Italian, Purish, Swedish, Portuguese, French, Dutch, Turkish, Arabic, Czech, Hebrew, Indonesian
4. Powerful Cortex-A9 processor
5. Android Operating System for fast boot-up and multitasking
6. Function IMMO+ Diagnose: Powerful combination of key programming/all system diagnostics/ advanced maintenance services
7. Vehicle Supported: Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
8. Advanced maintenance services: including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn.
9. Supports All System Special Functions and Active Test.

Notice:

If you want to release more functions to reach what IM608 does, you can buy Autel XP400 Adapter together

Comparison with Autel IM608:

With XP200 Key Programmer, IM508 Key Programmer Tool has all IMMO functions as IM608 except for Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning availability. With nearly 1/3 of its price, IM508 is a perfect affordable IMMO tool alternative for Autel IM608. IM508 is a professional automotive key programming tool that combines key programming, all car systems diagnosis and advanced service functions

Autel MaxiIM IM508 Features:

1. Powerful Cortex-A9 processor
2. 7" 1024x600 LCD capacitive touchscreen
3. Internal reliable 32GB Memory
4. Android Operating System for fast boot-up and multitasking
5. Powerful combination of key programming/all system diagnostics/advanced maintenance services
6. Smart Mode for guided and automated key learning
7. Expert Mode for advanced key learning
8. Read PIN/CS (all key lost) , key generation, key learning, remote learning
9. IMMO ECU reset/adaptation, refresh/coding
10. Transpronder read/write, EEPROM/ MCU read/write
11. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
12. Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

Autel MaxiIM IM508 EEPROM Read/Write Supported Types

ATMEL
AT24C01, AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT24C128, AT24C256, AT24C512, AT24C1024, AT24C128_1.8, AT24C256_1.8, AT24C512_1.8, AT24C01A, AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512, AT25010_1.8, AT25020_1.8, AT25080_1.8, AT25320_1.8, AT25640_1.8, AT25128_1.8, AT25256_1.8, AT59C11, AT59C22, AT93C46A, AT59C13, AT93C46, AT93C46R, AT93C56, AT93C57, AT93C66, AT93C76, AT93C86

CATALYST
CAT25C01, CAT25C02, CAT25C04, CAT25C08, CAT25C16, CAT25C32, CAT25C64, CAT25C128, CAT25C256

FAIRCHILD
NM24C16U, NM24C16UT, NM24C17U, NM24C17UT, FM93CS46T

MICROCHIP
85C72, 85C82, 85C92, 25xx080, 25xx160, 25xx320, 25xx640,25xx040_TSSOP, 25xx320_TSSOP, 25xx640_TSSOP, 93C06, 25xx040, 93C46X, 93C46A, 93C46, 93C46AX, 93C46BX, 93C46CX, 93C56A, 93C56, 93C66A, 93C66, 93C76A, 93C76, 93C86A, 93C86

NXP
PCF8582C, PCF8594C, PCF8598C

NATIONAL
NM93C13, NM93C14, NM93CS06, NM93C14TM8, NM93CS46, NM93CS56, NM93CS66

OKI
MSM16911

SONY
CXK1011, CXK1012, CXK1013

Seiko
S_24S45, S_24H30, S_24H30_SOP8, S_24H45, S_24H45_SOP8, S_24S30

ST
M24C01, M24C02, M24C04, M24C08, M24C16, M24C32, M24C64, ST24x01/ ST25x01, ST24x02/ ST25x02, ST24x04/ ST25x04/ ST24x08/ ST25x08, ST24x16, ST25x16, AT25040_1.8, AT25160_1.8, M95010, M95020, M95160, M95040, M95080, M35080, M95320, M95640, M95256, M95128, M95512, M93C46, M93C56, M93C66, M93C76, M93C86, M93S46, M93S56, M93S66

TOSHIBA
TC89101, TC89102, TC89121, TC89122

TMC
TMC93LC46, TMC93LC56, TMC93LC57, TMC93LC66, TMC93LC86

XICOR
X5043, X5045, X25043, X25045, X24C44

9S12 Read/ Write Supported Types
FREESCALE
MC9S12DG128

Autel MaxiIM IM508 Functions:

1. Professional Key Programmer
Autel IM508 is a professional car diagnostic scanner that provides extraordinary service functions for the immobilizer system, including: immobilizer system status, key learning, key add, all keys lost, remote control learning, remote control add, chip read and write. It' s a professional solution for car keys and remote controls and prevents your car from being stolen!
Smart Mode�accesses to a function menu where each function is configured as a smart guidesystem.
Expert Mode�accesses to a function menu where each function is separated from each other.
1) Read PIN / CS (All Key Lost)
2) Key Generation
3) Key Learning
4) Remote Learning
5) Backup / Restore IMMO Data
6) IMMO ECU Reset / Adaptation
7) IMMO ECU Refresh / Coding
8) BMW FEM / BDC Key Learning and ECU Adaptation
9) VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Key Lost, and More

IMMO:

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection. The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc

2. XP200 KEY & CHIP PROGRAMMER

The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.
1) Key Read / Write
2) EEPROM / MCU Read / Write

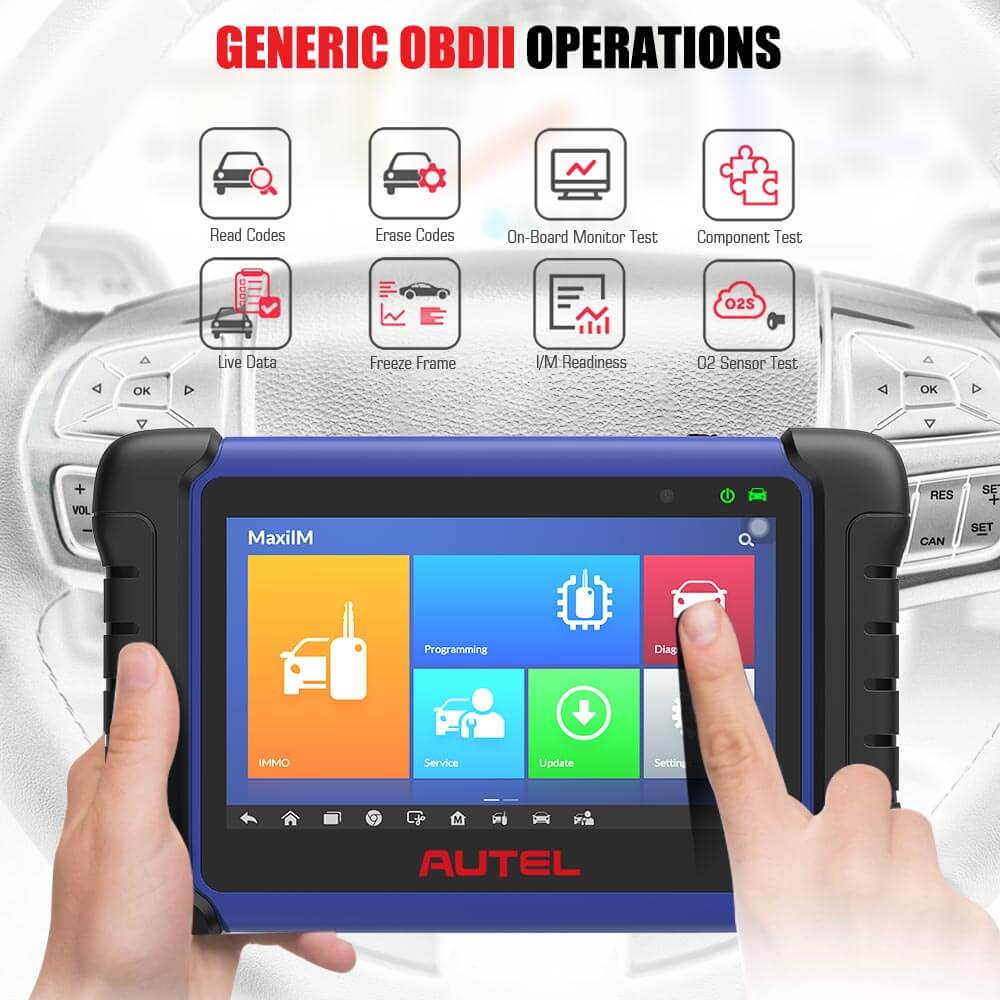

3. OE-Level All Systems Diagnosis for 80+ Vehicle Makes

Autel IM508 Car Scanner can perform OE-Level diagnosis on all car electronic systems like ABS, SRS, Engine, Transmission and etc and show live data of multiple sensors. It is compatible with more than 80 American, Asian and European makes and models.
1) All Systems Diagnostics
2) AutoVIN / AutoScan
3) Read / Erase Codes
4) View, Record, Playback Live Data
5) View Freeze Frame Data
6) Shop and Data Manager Applications

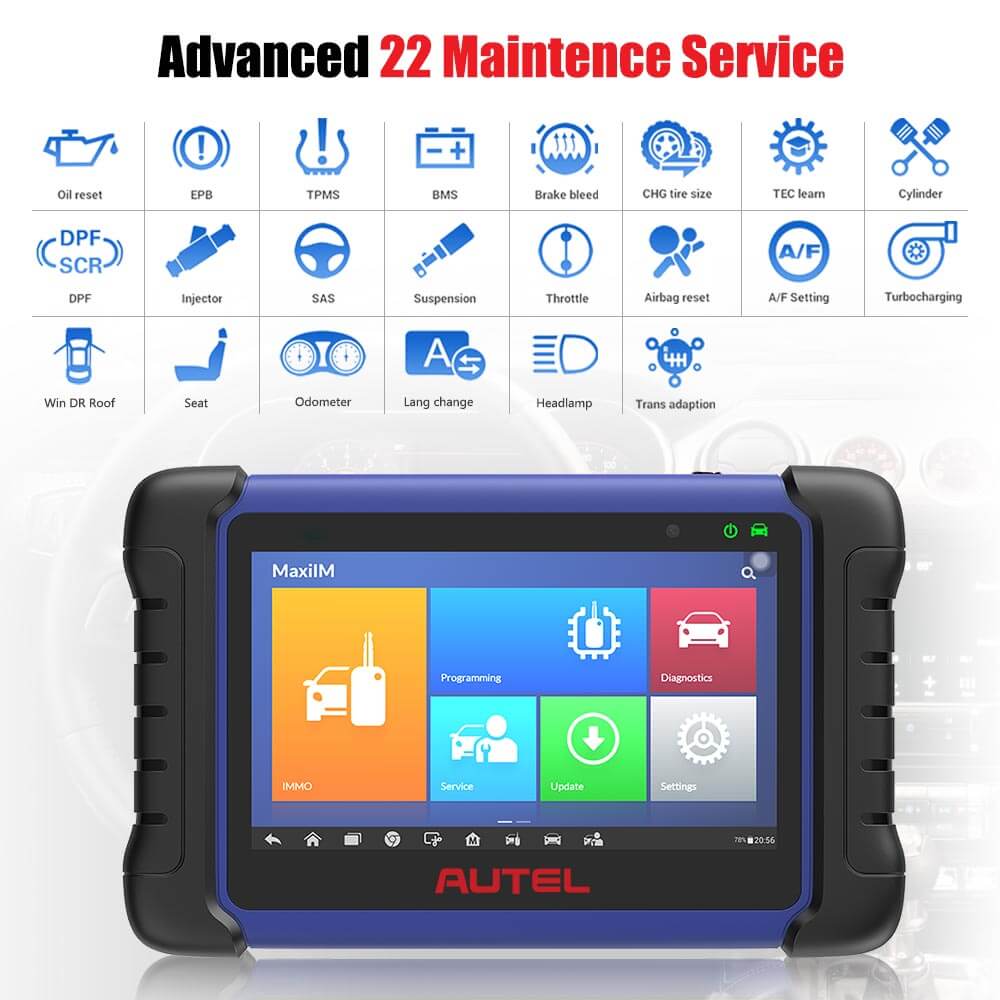

4. Most Commonly Used Reset Services

Oil Rest Service: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
EPB Service: This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
SAS Service:Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration.
TPMS Service: This function allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS replacement and sensor test.
BMS Service: The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF Service:This function is used to manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. Auto Scan Technology

The Autel IM508 professional OBD2 scanner comes with Auto Scan function that performs a comprehensive scanning over all the ECUs in the vehicle to locate systems' faults and retrieve DTCs for efficient diagnosis.

6. Live Data & Review Freeze Frame Data

The IM508 car diagnostic scanner reads codes, show live data of multiple sensors in or graph or text, clears codes. The Review Data section allows you to playback the recorded data frames of live data streams.

7. Remote Technical Support

The Remote Desk application launches the TeamViewer Quick Support program, which is a simple, fast and secure remote control screen. You can use the application to receive ad-hoc remote support from Autel's support center, colleagues, or friends, by allowing them to control your MaxiIM tablet on their PC via the TeamViewer software

If You have the Autel IM508 with XP400, You can do more

How to Update Autel MaxiIM IM508?

1. Make sure the Display Table is connected to power source with stable access to the Internet.
2. Tap the Update application button from the MaxiIM Job Menu or tap the update notification message when received one;or tap the Update icon on Vehicle Menu in Diagnostics application.The Update application screen displays.
3. Check all available updates:
* If you device to update all the items of IMMO software,select IMMO Tab and then tap the Update All button; if you want to update all items of diagnostic software, select Diagnose Tab and then tap the Update All button.
* If you only want to update one or some of the item(s),tap the Update button on the right colum of the specific item(s).
4. Tap the Pause buttons to suspend the updating process.Tap Continue to resume the update and the process will continue from the pause point.
5. When the updating process is completed,the firmware will be installed automatically.The version will replace the older version.

Autel MaxiIM IM508 Display

1. 7.0" LCD Capacitive Touchscreen
2. Ambient Light Sensor - detects ambient brightness.
3. Power LED - indicates battery level & charging or system status.
4. Vehicle Communication LED - flashes green when the Display Tablet is communicating/ linking with the vehicle's system.
The power LED displays green, yellow or red depending on power level and operating state.
A. Green
* Illuminates green when the Display Tablet is charging and the battery level is above 90%.
* Illuminates green when the Display Tablet is powered on and the battery level is above 15%.
B. Yellow
* Illuminates yellow when the Display Tablet is charging and the battery level is below 90%.
C. Red
* Illuminates red when the Display Tablet is powered on and the battery level is below 15%.

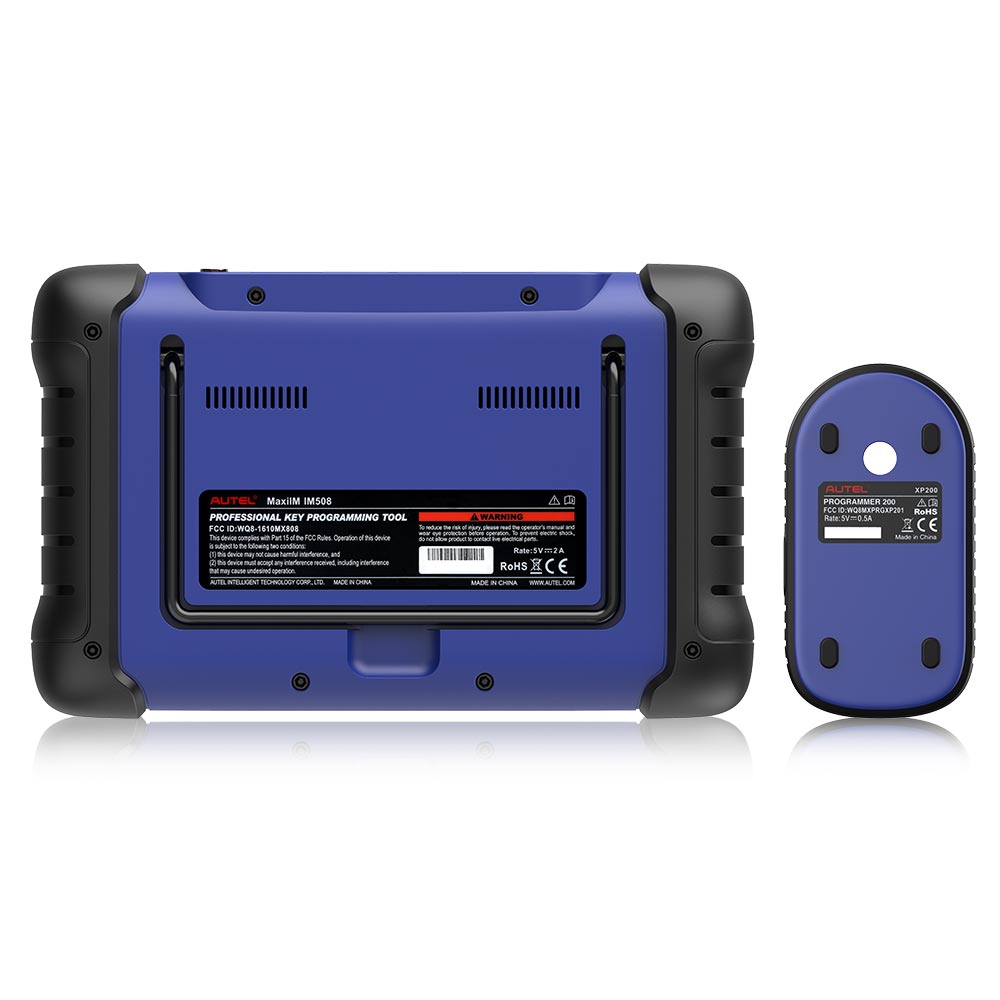

Autel IM508 Description
5. Collapsible Stand �extends from the back to allow hands-free viewing of the Display Tablet.
6. Heat Sink
7. Built-in Battery
Autel IM508 Description
8. Mini USB OTG Port
9. Micro SD Card Slot �holds the micro SD card.
10. DB15-Pin Port �connects the main cable.
11. USB Port
12. Lock/Power Button �turns the device on & off with long press, or locks the screen with short press.
13. Vehicle Key Chip Slot �holds the vehicle key chip.
14. Vehicle Key Slot �holds the vehicle key.
15. Status LED Light �indicates the current operating status.
16. Connection Port �connects EEPROM Adaptor and EEPROM ClampIntegrated MC9S12 Cable.
17. USB Port �provides data communication and power supply.
Vehicle Key Slot
Holds the Vehicle Key to read and write vehicle key information.
Vehicle Key Chip Slot
Holds the Vehicle Key Chip to read and write vehicle key chip information.
Status LED Light
The status LED of the XP200 indicates the operating status of the device.
See Table below for detailed description.

      LED Light

      Color/Status

      Description

      Power

      Solid Green

      Powered on and Default Status

      Flashing Green

      Communication Status

      Solid Red Error Status

      Error Status

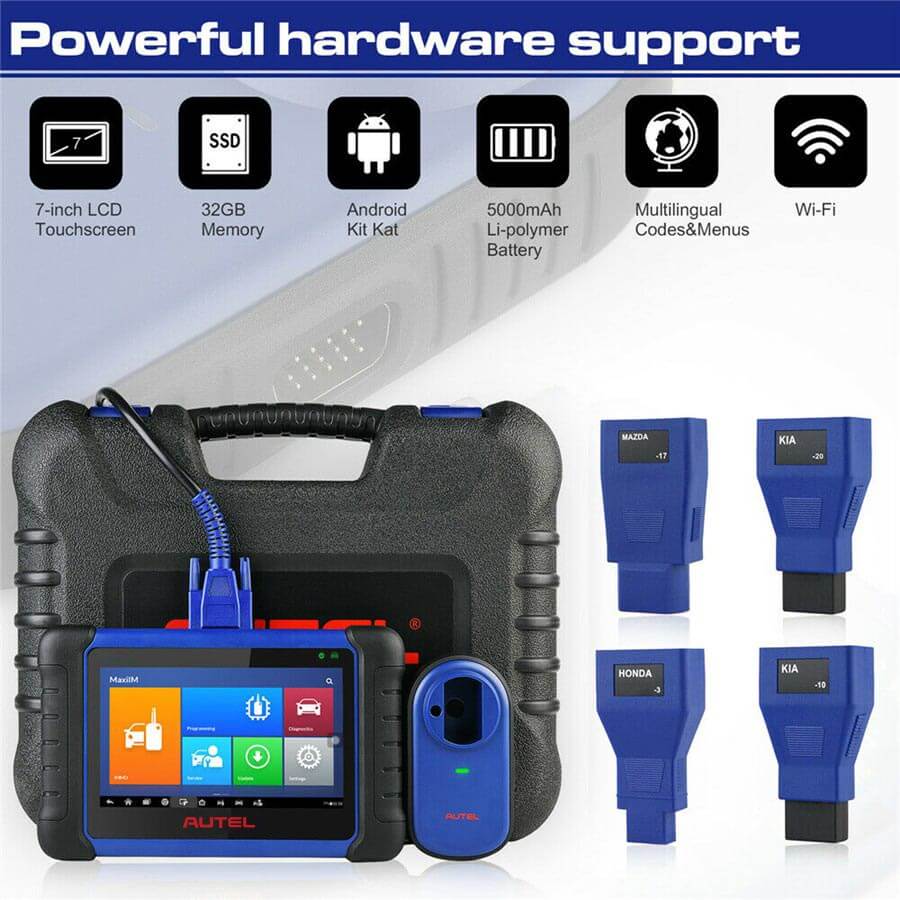

      Autel MaxiIM IM508 Package List:

      1pc x MaxiIM IM508 Tablet
      1pc x XP200 Key Programmer
      1pc x Honda-3 Adaptor
      1pc x AAC001 �MED17 Cable
      1pc x KIA-20 Adaptor
      1pc x Mazda-17 Adaptor
      1pc x KIA-10 Adaptor
      1pc x USB External Power Adapter
      1pc x Main cable
      1pc x Mini USB Cable
      1pc x Carrying Case
      1pc x Quick guide
